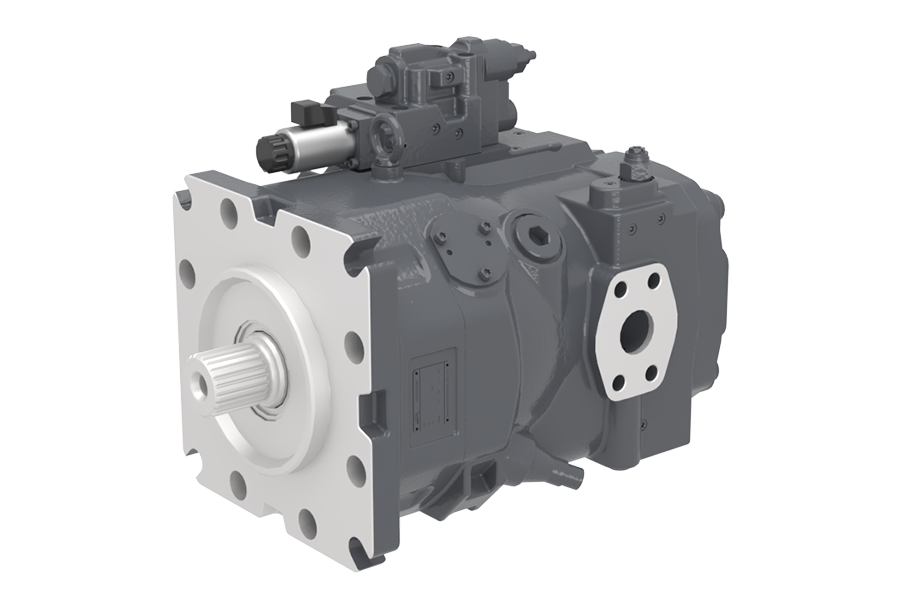

V32G Series Robust High-pressure Piston Pump

Series of pictures

The V32G series pump has a high working pressure, the nominal pressure can reach 420 bar, and the peak pressure can reach 450 bar.The overall structure adopts a 45 ° oblique design to achieve compact and lightweight purposes.The V32G series pump has higher power density, which is about 5% higher than the previous generation.

Specification: 065~300 cm3 /rev

Rated pressure: 380~420 bar

Peak pressure: 420~450 bar

Configuration model/order number

****

Copy to the clipboard

ADD TO CART Catalog download Obtain 3D/2D drawings Export the configured parameters

Open all | Close all

Series advantages

High continuous pressure
Excellent self-priming performance
Lower oil outlet standby pressure to reduce power loss(10bar)
Enhanced bearing to improve service life
Compact design to achieve a breakthrough in higher power density ratio
Effectively reduce the amount of hysteresis, high control accuracy
Low noise

Technical specifications

Size	Displacement cc/rev	Pressure bar
Size	Displacement cc/rev	Rated	Peak
V32G065	65	420	450
V32G110	110	420	450
V32G145	145	420	450
V32G160	160	420	450
V32G205	203	420	450
V32G280	280	420	450
V32G300	300	380	420

Application industry

Concrete Pump
