Specifications: 18~105
Rated pressure: 300~350 bar
Peak pressure: 320~400 bar

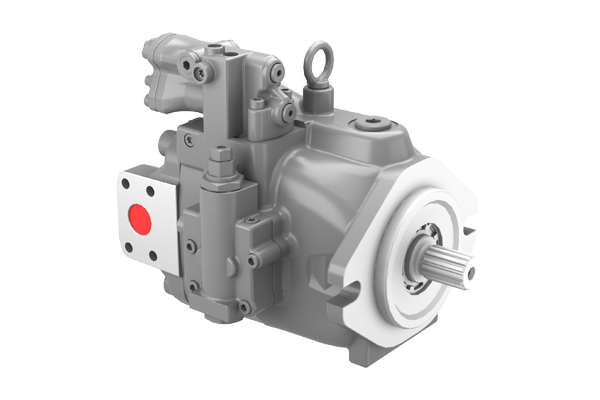

·Variable pump in swash-plate design for open circuit.
·High continuous pressure.
·Exceptional self-priming capability.
·Excellent reliability and long life.
·High power to weight ratio.
·Variety of control options.
·Optional through drive.
·Quick control response.
·Low pressure pulsation and low noise.
·Developed for engineering, mobile vehicles, industrial, other industrial application and agricultural machinery
| Size | 18 | 28 | 35 | 47 | 65 | 76 | 85 | 105 | |
| Displacement(cc/rev) | 18 | 28 | 35 | 47 | 65 | 76 | 85 | 104.3 | |
| Speed | Rated(rpm) | 3300 | 3000 | 2850 | 2700 | 2600 | 2400 | 2400 | 2200 |
| Max(rpm) | 3900 | 3600 | 3400 | 3250 | 3140 | 3000 | 3000 | 2600 | |
| Min(rpm) | 600 | ||||||||
| Pressure | Rated(bar) | 300 | 300 | 300 | 320 | 320 | 320 | 320 | 350 |
| Peak(bar) | 320 | 320 | 320 | 350 | 350 | 350 | 350 | 400 | |
| Casting pressure (Relative) | Rated(bar) | 2 | |||||||
| Peak(bar) | 4 | ||||||||
| Suction pressure (Absolute) | Rated(bar) Oil viscosity ≤ 30mm2/s | 1 | |||||||
| Peak(bar) | 5 | ||||||||
| Casting oil filling volume （L） | 0.4 | 0.55 | 0.55 | 0.6 | 0.65 | 0.8 | 0.9 | 1 | |
| Oil viscosity（ mm2/s） | 10~1000, optimal range 16~36 | ||||||||
| Oil temperature （ ℃） | -20~100 | ||||||||
| Oil cleanliness | 20/18/15 (SO 4406) and above | ||||||||
| Weight（ kg） Without auxiliary flange | 15.9 | 17 | 18.7 | 21.5 | 25 | 28 | 33 | 45 | |
