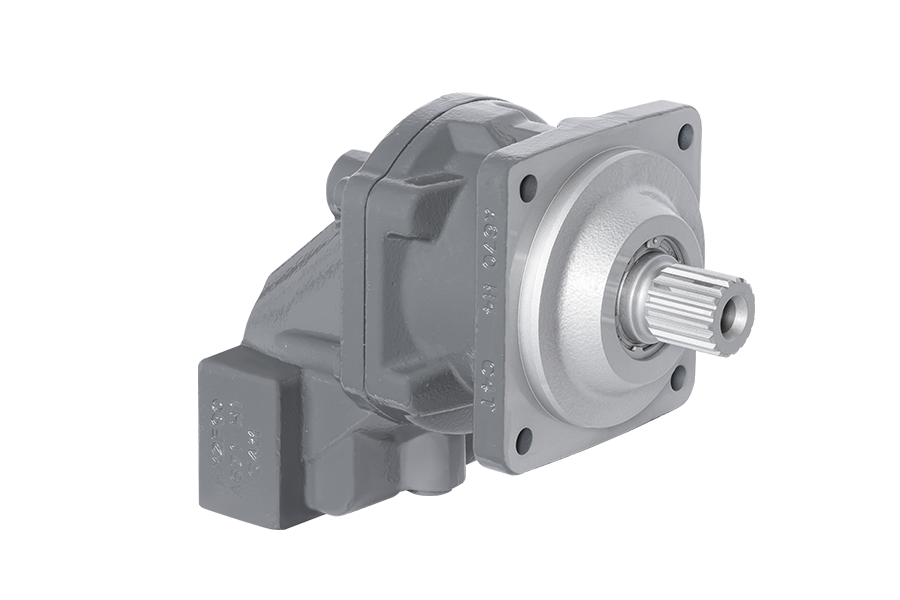

Specification：23~125 cc/rev
Rate pressure：400 bar
Max. pressure：450 bar
Higher pressure and higher speed
High starting efficiency
High power density
High torque, long service life
Excellent low-speed performance
Suitable for construction machinery and general industrial vehicles
| Feature | 23 | 28 | 32 | 45 | 56 | 63 | 80 | 90 | 125 | |
| Max. Displacement (cc/rev) | 23 | 28 | 32 | 44.9 | 56.1 | 63 | 79.8 | 90.5 | 125 | |
| Direction of rotation | Clockwise, Counter clockwise | |||||||||
| Rotation speed | Rated (rpm) | 5500 | 6300 | 6300 | 5000 | 5000 | 4500 | 4000 | ||
| Max. (rpm) | 6000 | 6900 | 6900 | 5500 | 5500 | 5000 | 4400 | |||
| Rated pressure (bar) | 400 | |||||||||
| Max. pressure (bar) | 450 | |||||||||
| Theoretical output torque (N·m) | @ΔP=400 bar | 146 | 179 | 204 | 286 | 357 | 401 | 508 | 576 | 796 |
| Max. Flow (L/ min) | @nnom | 138 | 177 | 202 | 225 | 281 | 315 | 359 | 407 | 500 |
| Moment of inertia (kg·m2) | 0.0012 | 0.0012 | 0.0012 | 0.0033 | 0.0042 | 0.0042 | 0.0056 | 0.0058 | 0.0091 | |
| Weight (kg) | 10.8 | 11.9 | 11.9 | 17 | 18 | 24.7 | 32.8 | |||
| Volume in the case (L) | 0.2 | 0.2 | 0.2 | 0.6 | 0.45 | 0.65 | 1.1 | |||
| Oil viscosity (mm2/s) | 5 ~ 1600, Best range: 16~36 | |||||||||
| Oil temperature (℃ ) | -25 ~ 103 | |||||||||
| Oil cleanliness | ISO 4406 20/18/15 | |||||||||
