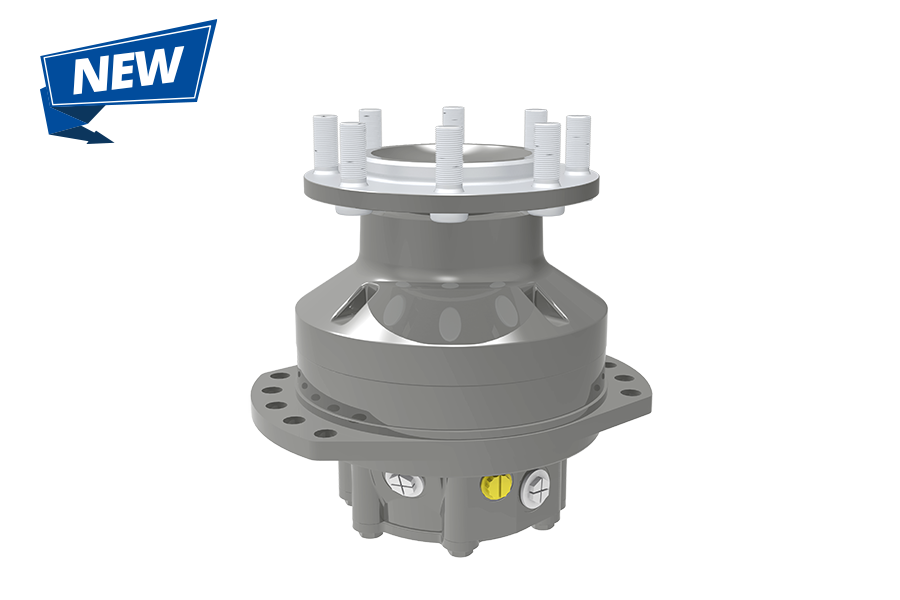

HRP08 Series Radial piston hydraulic motor

Series of pictures

The HRP08 series radial piston hydraulic motor, is a kind of low speed high torque hydraulic motor, disc valve structure, with high pressure, good stability at low speed, high volumetric efficiency and mechanical efficiency, the motor can be equipped with a variety of functional modules.

Displacement：627~1356 cc/rev

Max.differential pressure：400~450 bar

Configuration model/order number

****

Copy to the clipboard

ADD TO CART Catalog download Obtain 3D/2D drawings Export the configured parameters

Open all | Close all

Series advantages

Using tapered roller bearing structure, can support larger axial and radial load.
Advanced disc valve structure,strong automatic compensation ability after wear, to ensure high volumetric efficiency, long life, efficient and stable work.
Various function modules can be selected, such as flushing valve, brake, variable speed valve, speed sensor, etc. to meet the needs of users in various fields.

Technical specifications

Series			HRP08
Motor performance
Displacement		cm3/rev.	627	780	934	1248	1356
Max.torque		N·m	4270	5130	6022	7949	8036
Min.stable speed		rpm	5
Max.speed（Displacement）		rpm	210	160	140	100	155
Pressure	Max.differential pressure	bar	450			400
Brake
Minimum static torque		N·m	9000
Release pressure		bar	12~30
Maximum pressure at brake port Z		bar	30
Oil volume to operate brake		cm3	40
